Partially to fully automated factory-fitted system technology for insulating timber frame elements
The Fibreblow® Premium system is a first-class system technology for uniform and reliable blow-in results in roof, wall and ceiling elements. It is powerful, user-friendly and enables seamless scaling from partially to fully automated processes, integration into existing production lines and connection to software-controlled bridge or robot systems. The patented technology ensures process reliability, consistently high execution quality and real time savings in production - a clear competitive advantage for your company.
The Fibreblow® Premium system consists of the Fireblow Premium Plate and the Fibreblow Premium Feeder Drop or Fireblow Premium Feeder Lift for shredding large bales and filling the blow-in plate.

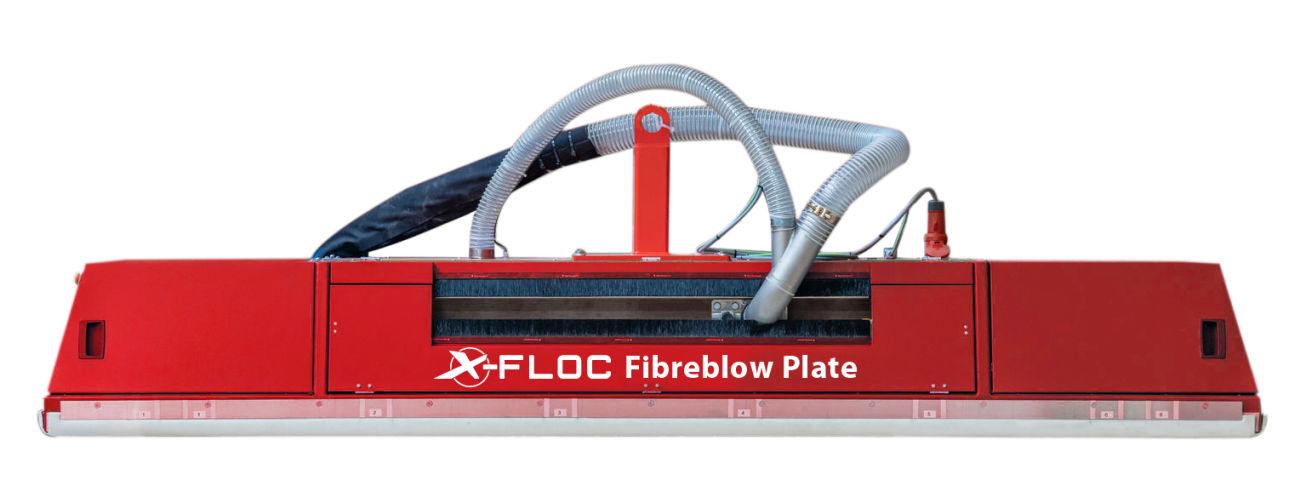

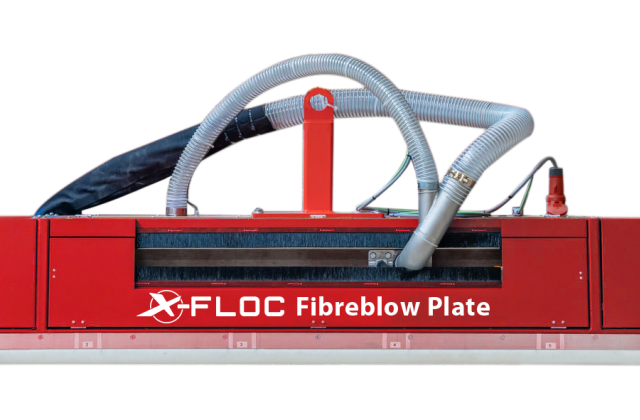

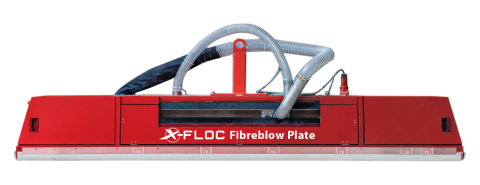

Fibreblow Premium Plate
The Fibreblow Plate is a blow-in plate for the industrial filling of wall, roof and ceiling elements with loose insulation materials. In combination with the Fibreblow Feeder Lift and the Fibreblow Feeder Drop, it ensures fast and even filling of the cavity with optimally prepared fibres. The patented nozzle design ensures minimal hill formation, optimum corner filling and maximum resistance to settlement. The software ensures seamless integration into existing production processes and short set-up times when changing insulation materials.
Plus point: Performance
- Minimum hill formation: ±10mm
- Material throughput: 2,000 kg/h with 20 cm insulation thickness (cellulose)
- Maximum resistance to subsidence
- Integrated booster
- Automated filling via manually selectable nozzles
- Positioning laser for exact placement of the board
- Low-dust filling and encapsulated blow-in panel
- Laser-assisted positioning, e.g. with hall or gantry crane
- Software configuration for two insulation materials (others optional)
- Compartment geometry independent uniform density distribution
Performance features | |
---|---|

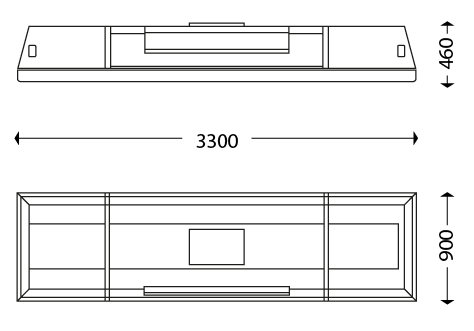

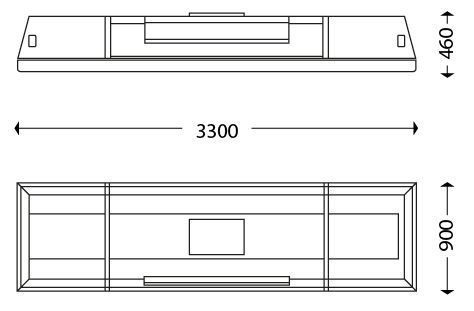

1. Dimensions (LxWxH) | 3300x900x460mm (P6 without suspension) |
2. Weight | ca. 480kg |
3. Electrical connection | 400V/50Hz/16A |
4. Material throughput | 2000kg/h (cellulose) |
5. Control system | Touch screen, Tablet (mobil) |

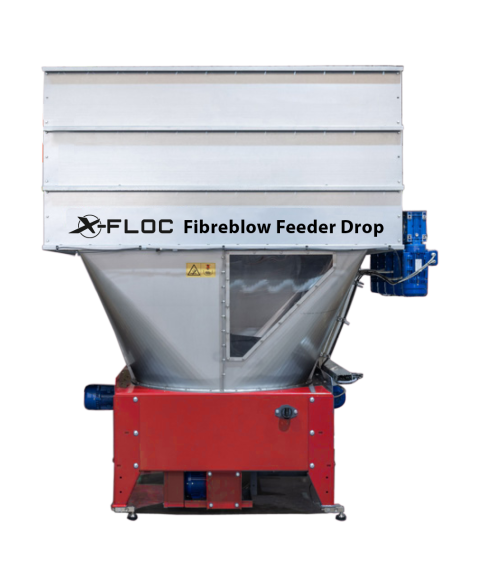

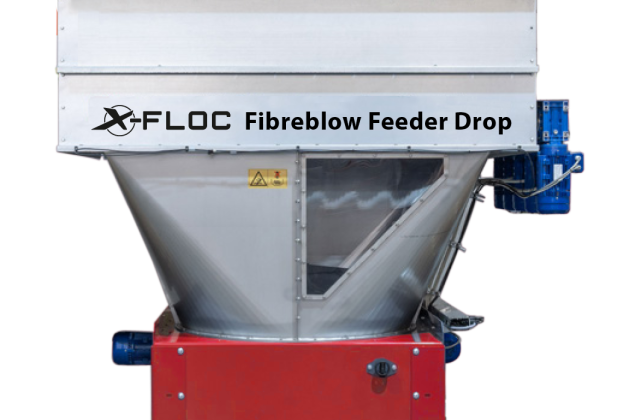

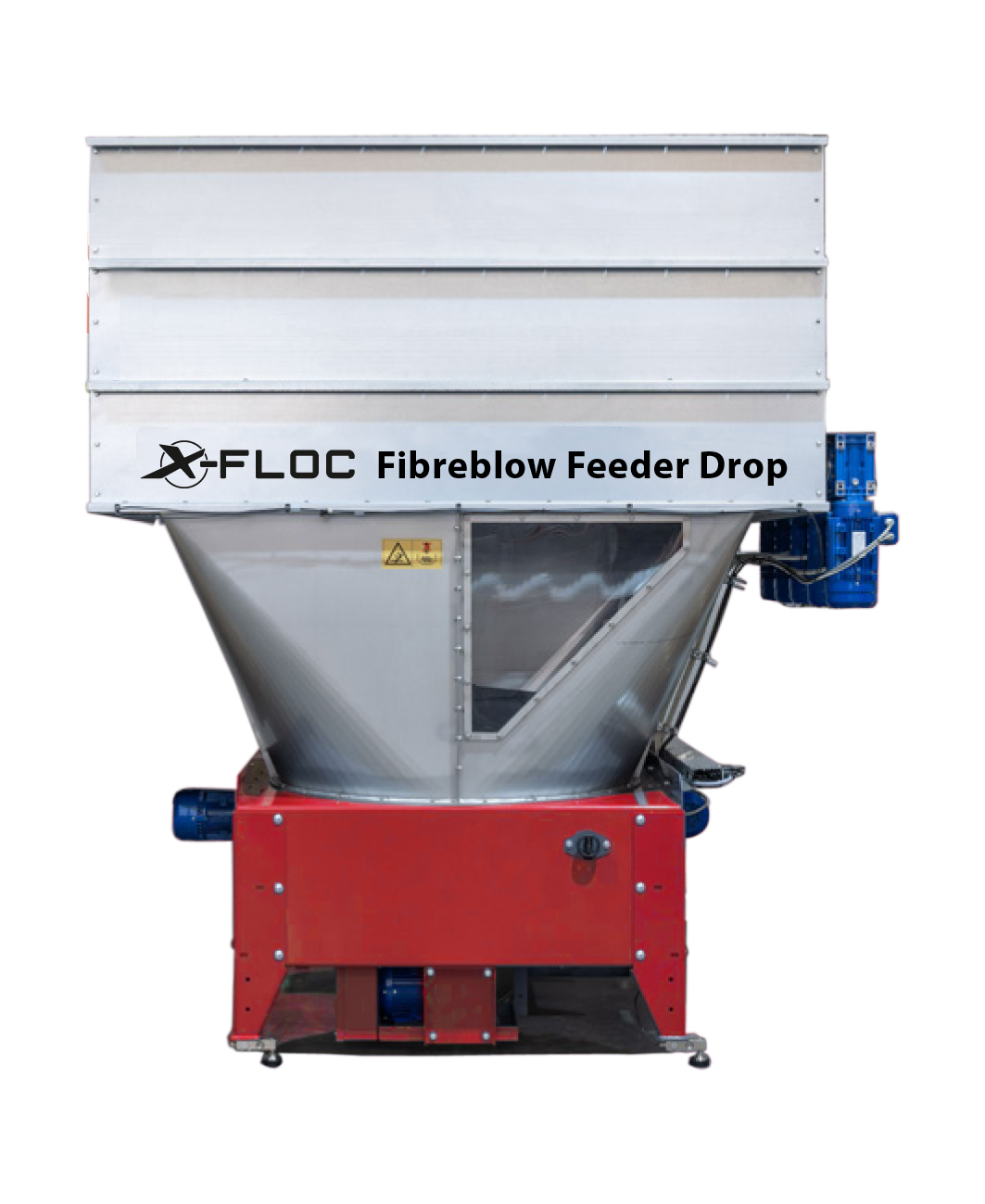

Fibreblow Premium Feeder Drop
Customisable filling volume
Several small bales or three large bales: The Premium Feeder Drop with integrated blow-in module is the perfect solution for feeding optimally prepared insulation material to a Premium Plate without interruption. Both large and small bales are gently broken up and shredded beforehand by four horizontal, individually driven toothed rollers. The Feeder Drop is characterised by variable adjustment of the filling volume (standard: 6m³) to the respective requirements - by means of an optional metal frame attachment or by installation in individual material feed solutions.
Plus point: performance
- First in - first out principle for fibre-friendly pulping without shear stress
- Blow-in module for maximum material throughput (1200 kg/h with wood fibre, 2000 kg/h with cellulose and glass wool)
- Optimum fibre pre-treatment from bale breaking to fibre pulping
- Integrated weighing cells and measuring electronics for precise process control
- Quick and easy loading and cleaning

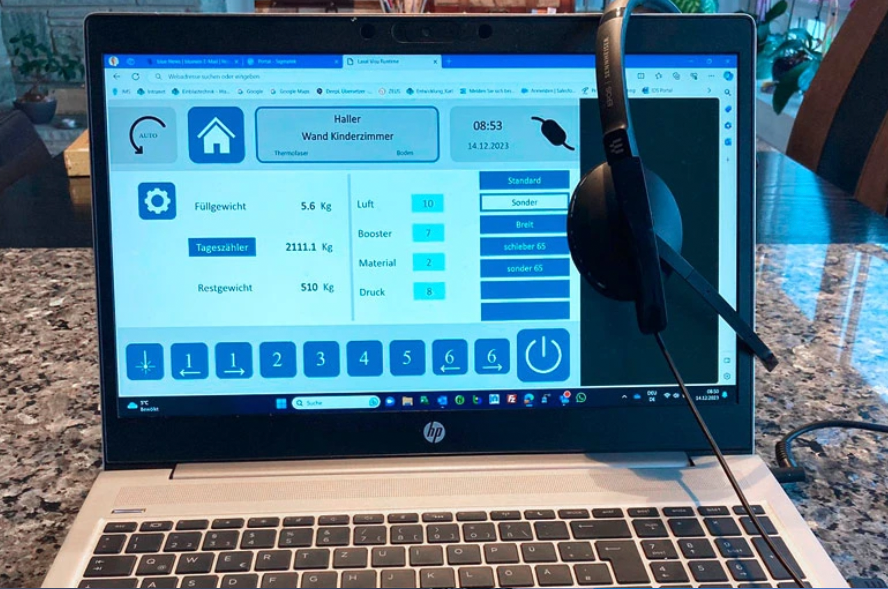

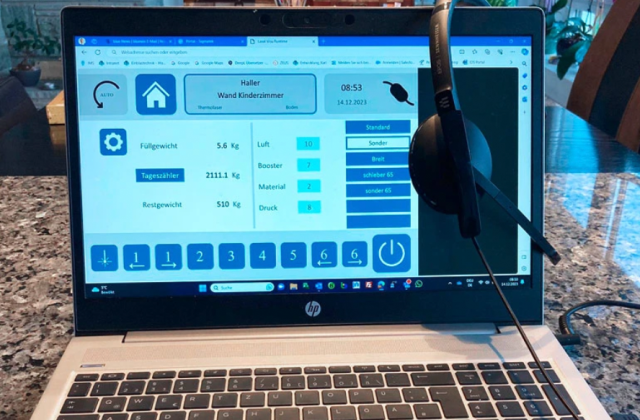

- Remote maintenance software for monitoring and diagnostics
- Customisable filling volume (option: metal frame attachment)
Performance features | |
---|---|

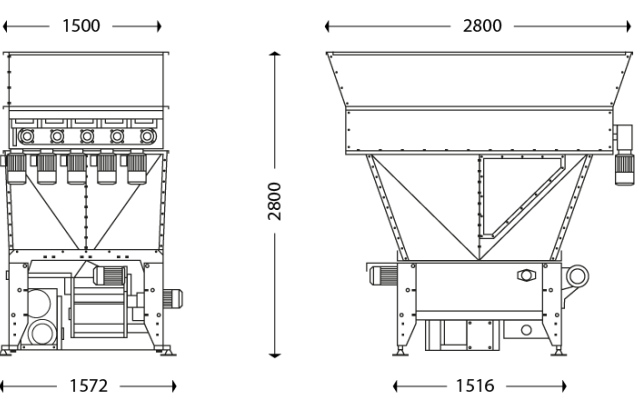

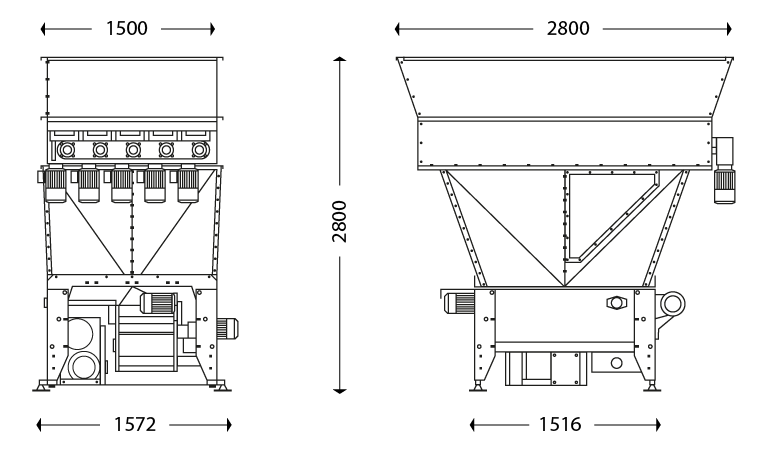

1. Dimensions (LxWxH) | 2800x1500x2800mm |
2. Weight | approx. 1465 kg |
3. Electrical connection | 400V/50Hz/32A |
4. Filling volume | 6m³ (standard) |
5. Control system | Touch screen, Tablet (mobil) |

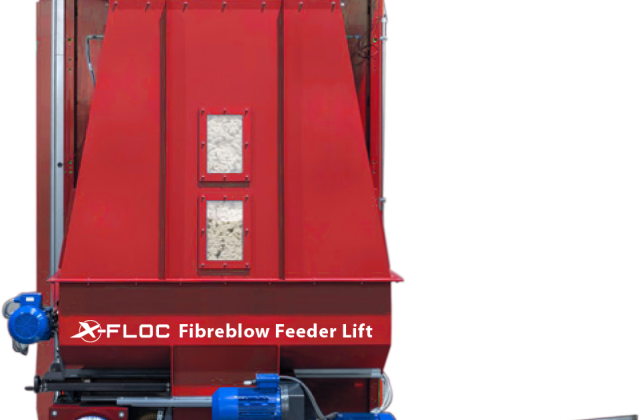

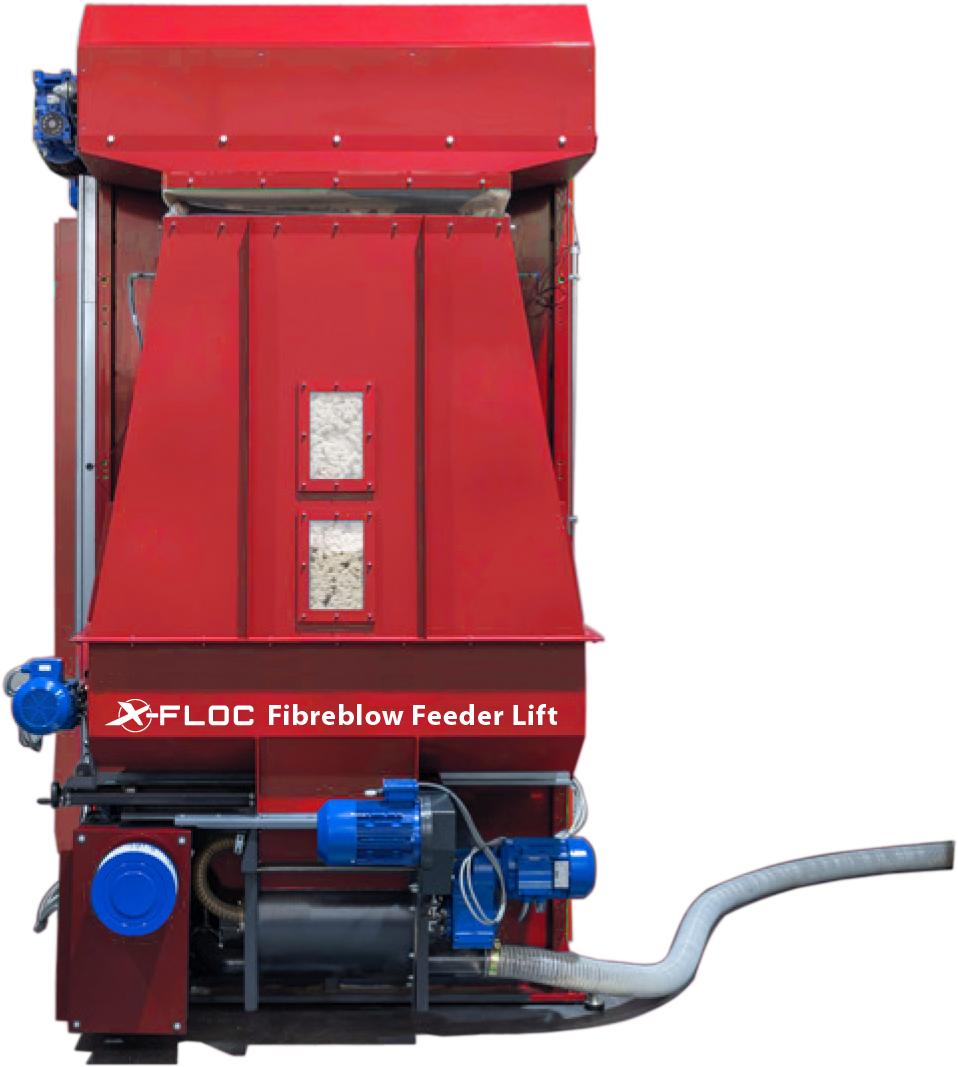

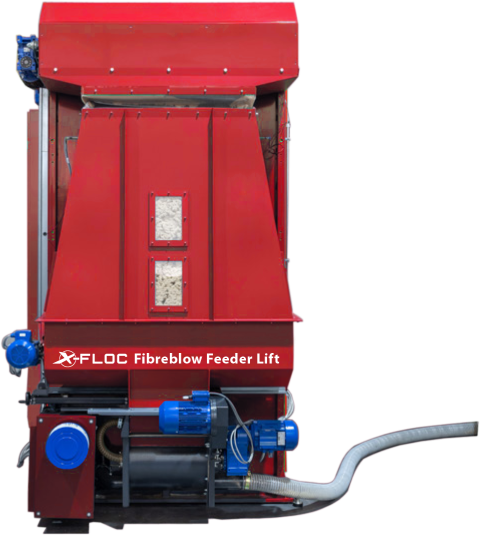

Fibreblow Premium Feeder Lift
Optimum fibre preparation and material feeding
The Fibreblow Feeder Lift with integrated blow-in module is the perfect large bale shredder for the automated and fast processing of loose insulation materials. It ensures particularly gentle pulverisation of the fibres to be blown in. Wood fibre, cellulose and glass wool can be fed into the Premium Plate at high speed and blown into the frame elements. Weighing cells and suitable measuring electronics enable continuous monitoring of the blowing quality and, if necessary, rapid adjustment of the machine settings.
Plus point: performance
- First in - first out principle for fibre-friendly dissolving without shear stress
- Integrated blowing module for maximum material throughput (1200 kg/h with wood fibre, 2000 kg/h with cellulose and glass wool)
- Optimum fibre pre-treatment from bale breaking to fibre pulping
- Integrated weighing system for precise process control
- Quick and easy loading and cleaning
- Material changeover takes little time
- Remote maintenance software for monitoring and diagnostics
Performance features | |
---|---|

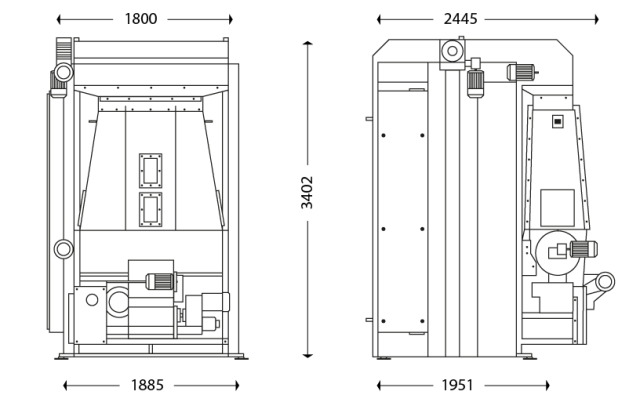

1. Dimensions (LxWxH) | 2445x1800x3402mm |
2. Weight | approx. 2065kg |
3. Electrical connection | 400V/50Hz/32A |
4. Stock volume | approx. 2.5m³ |
5. Control system | Touch screen, Tablet (mobil) |
- Feeder drop
- Varia support (plate)
- Booster (Plate)
- Insulation configuration (Plate)
