Wall-Insulation

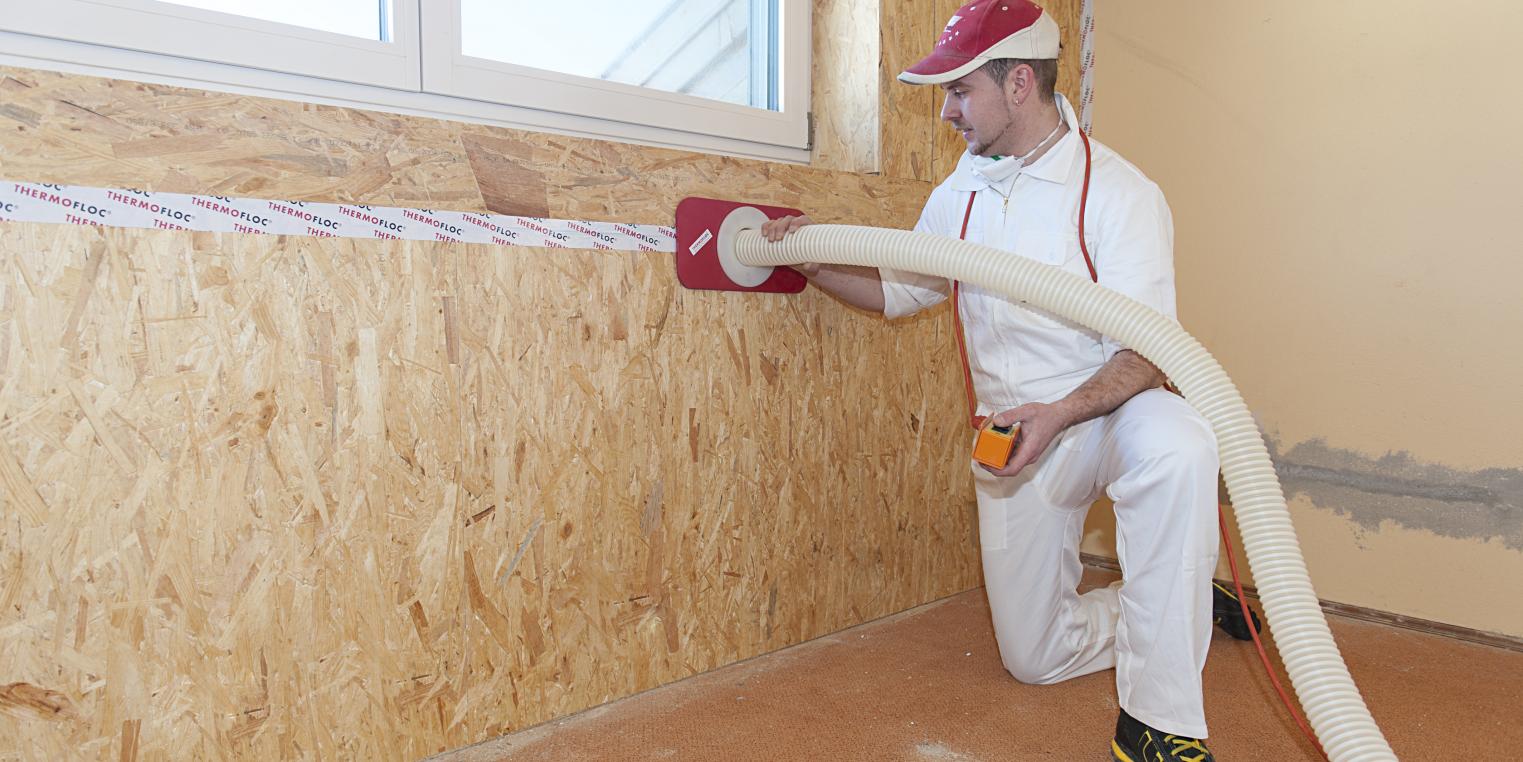

A common wall insulation is the insulation of a wooden frame construction wall with cellulose insulation material. For this, Thermofloc is loosened mechanically, transported under air pressure into the cavities of the components and compressed according to the processing guidelines, so that a seamless, continuous and vapor-permeable insulation layer is created. Cracks, cavities and corners are reliably closed off by the blow-in insulation. After the blowing-in work has been completed, the blowing-in holes are simply closed with the Thermofloc adhesive tape.

The result: a comfortable indoor climate in every season. In this way, the blown insulation material obtained from daily newspapers significantly reduces the energy costs for heating in winter and air conditioning in summer.

Example of use

Outside Wall, plastered with mineral plaster on gypsum lath

W3
ConstructionThickness
1. Cement-lime mortar15 mm
2. Wood-wool lightweight building panel35 mm
3. Crossbar/THERMOFLOC Fibre *140-300 mm *
4. OSB/Plywood12,5 mm
5. THERMOFLOC Vapour barrier
6. Gypsum wallboard12,5 mm
* THERMOFLOC insulation thickness in mm = calculated U-value (W/m²K)
140 = 0.22
160 = 0.2
180 = 0.18
200 = 0.16
220 = 0.15
240 = 0.14
260 = 0.13
280 = 0.12
300 = 0.11

Outside Wall

W5
ConstructionThickness
1. Facades (clinker, wood, plaster)20 mm
2. Lathing40 mm
3. Bit. soft fibreboard19 mm
4. Crossbar/THERMOFLOC Fibre *140-300 mm *
5. OSB/Plywood12,5 mm
6. Gypsum wallboard12,5 mm

Building Partition Wall (F30-B/F90-B)

W6
ConstructionThickness
1. Gypsum wallboard12,5 mm
2. Gypsum fibreboard20 mm
3. Crossbar/THERMOFLOC Fibre140 mm
4. OSB/Plywood12,5 mm
5. Gypsum wallboard12,5 mm
* THERMOFLOC insulation thickness in mm = calculated U-value (W/m²K)
80 = 0.24
100 = 0.22
120 = 0.19
140 = 0.17
160 = 0.16
180 = 0.15
200 = 0.14

Outside Wall, Log House

W9
ConstructionThickness
1. Square-cut log70 mm
2. Crossbar/THERMOFLOC Fibre *80-200 mm *
3. THERMOFLOC Vapour barrier
4. Profile timber paneling30 mm
* THERMOFLOC insulation thickness in mm = calculated U-value (W/m²K)
80 = 0.33
100 = 0.28
120 = 0.24
140 = 0.21
160 = 0.19
180 = 0.17
200 = 0.16

An excerpt from the references: Wall-Insulation
